Mining Chain Link Mesh: Global Standards & Critical Role in Underground Support Systems

Introduction: The Unseen Guardian of Mine Safety

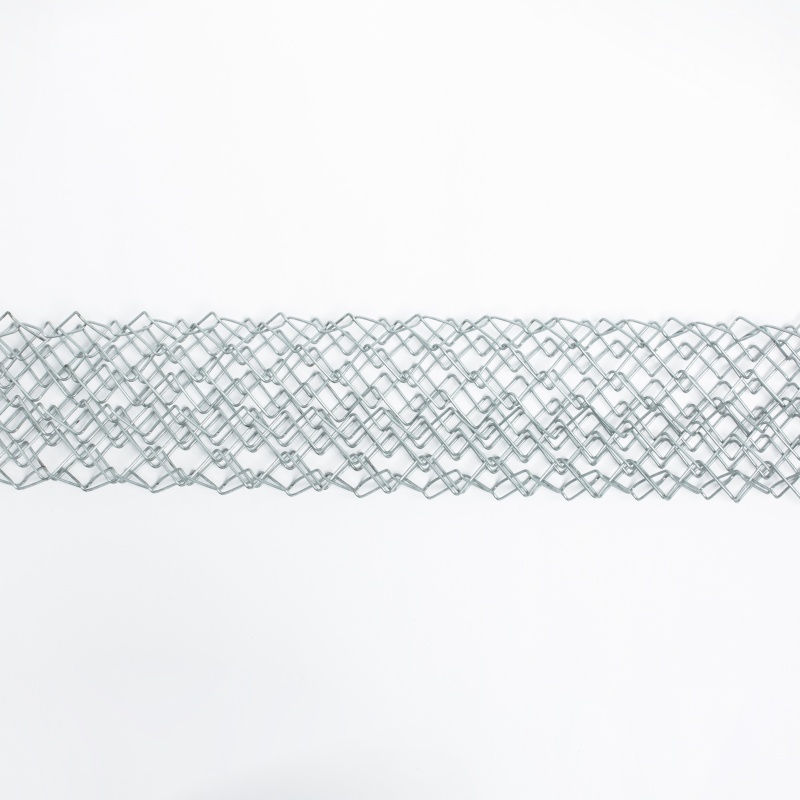

In global mining operations, chain link mesh serves as a vital ground control solution, reducing roof collapse incidents by over 60% (ISO 14628:2020 certified). This engineered barrier combines high-tensile strength with impact resistance to create mining’s first line of defense.

1. Technical Specifications Under International Standards

1.1 Material & Construction

  • Core Material: ASTM A641 low-carbon galvanized steel wire (Tensile strength ≥550 MPa)

  • Mesh Geometry: 80×80mm or 100×100mm openings (MSHA Part 48 compliant)

  • Edge Reinforcement: Helical wire locking per EN 10223-3 (40% tear resistance boost)



1.2 Performance Metrics

Parameter Int'l Standard FunctionTensile Strength
Tensile Strength ≥50 kN/m (ISO 14628) Resists strata pressure
Elongation Rate ≤12% (AS/NZS 1742) Absorb kinetic energy
Corrosion Resistance Zinc coating ≥220g/m² Long-term humidity protection



2. Critical Functions in Ground Control

2.1 Active Rock Support System

  • Strata Reinforcement: Forms integrated "beam-arch structure" with rock bolts (South African CSIR model)

  • Fragmentation Containment: Blocks ≤300mm falling debris (NIOSH Category 1 support)

2.2 Disaster Prevention

  • Rockburst Mitigation: Dissipates 30% dynamic load (DMT Germany testing)

  • Fire Resistance: EN 13501-1 certification (Melting point >1000°C)



3. Global Innovations in Smart Mining

  • Australian IoT Integration: Fiber-optic embedded mesh for real-time stress monitoring

  • Chilean Cost Efficiency: 25% reduction in support costs with shotcrete-composite systems (ICMM 2023)

  • Deep Mine Solutions: Fatigue-resistant alloy mesh for >1,000m depths (10+ year service life)



4. 3 Keys to Selecting Internationally Compliant Mesh

  1. Certification: ISO 9001 + ISO 45001 certified manufacturing

  2. Geo-Adaptability:

    • High-sulfur mines: 316L stainless steel variant

    • Arctic operations: GOST R -50°C impact certification

  3. Lifecycle Economics: Galvanized mesh triples maintenance intervals vs. welded mesh



Conclusion: Engineering Saper Mines Through Technology

With the new ISO 19438:2023 standard for digital ground control, intelligent chain mesh is becoming the backbone of mine IoT systems. Choosing globally certified products isn’t just regulatory compliance—it’s a commitment to miner safety.








Post time: Jul-28-2025
