In the deep, challenging environment of a metal mine, the rock above is not always a reliable ceiling. It is a dynamic, often unpredictable force. The difference between a productive, safe mine and a hazardous one lies in the sophisticated system of ground support—the silent, unseen shield that protects lives and infrastructure. This article explores the essential products that form the backbone of modern ground support strategies in metal mining.
The Challenge: Why Metal Mines are Unforgiving
Metal mining often presents more severe geological challenges than other types of mining:
High Stress Regimes: Depth and tectonic forces create immense pressure, leading to rockbursts and violent failure.
Complex Geology: Faults, weak shear zones, and abrasive, hard rock masses demand robust and adaptable solutions.
Corrosive Environments: Groundwater, often acidic from sulfide minerals, can aggressively degrade standard support materials.
Dynamic Disturbances: Production blasting and heavy machinery create constant vibrations that fatigue the rock mass.
These conditions require ground support products that offer not just strength, but also high levels of toughness, ductility, and longevity.
The Core Ground Support System: From Tendons to Skin
A modern ground support system is an engineered ecosystem where each component plays a critical role.
1. Rock Bolts & Cable Bolts: The Primary TendonsJF Split Bolt Mining System
These are the fundamental elements of internal reinforcement, transferring load from unstable rock to a stable, deeper rock mass.
Friction Bolts (e.g., Split Sets, Swellex): These provide immediate, full-column friction support upon installation. They are ideal for securing broken rock in drifts and are quick to install, making them a versatile first-line defense.
Resin-Grouted Rebar Bolts: These offer superior bond strength and load capacity compared to mechanical bolts. The resin anchor creates a formidable link between the bolt and the rock, making them the workhorse for permanent support in high-stress areas.JF Resin Anchoring Agent
Yield/Ductile Bolts: A breakthrough for high-stress and squeezing ground. These bolts are designed to deform significantly without breaking, absorbing vast amounts of energy. They “yield” to extreme pressure, protecting the excavation from sudden, catastrophic failure.
Cable Bolts: Essentially “super bolts,” these provide long-range reinforcement for large, unstable wedges or as supplementary support in stopes and intersections.
2. Shotcrete: The Reinforced Skin
Sprayed concrete that provides immediate surface support, prevents loose rock from falling, and binds the reinforced rock mass into a coherent structure.
Wet-Mix Shotcrete: The industry standard for modern mines. It offers lower rebound, less dust, higher and more consistent strength, and improved safety for workers compared to dry-mix methods.
Steel-Fiber Reinforced Shotcrete (SFRS): The addition of steel fibers transforms the brittle concrete into a ductile material, capable of sustaining significant deformation without collapsing—a critical property in dynamic rock conditions.
3. Mesh & Straps: The Integrated Web

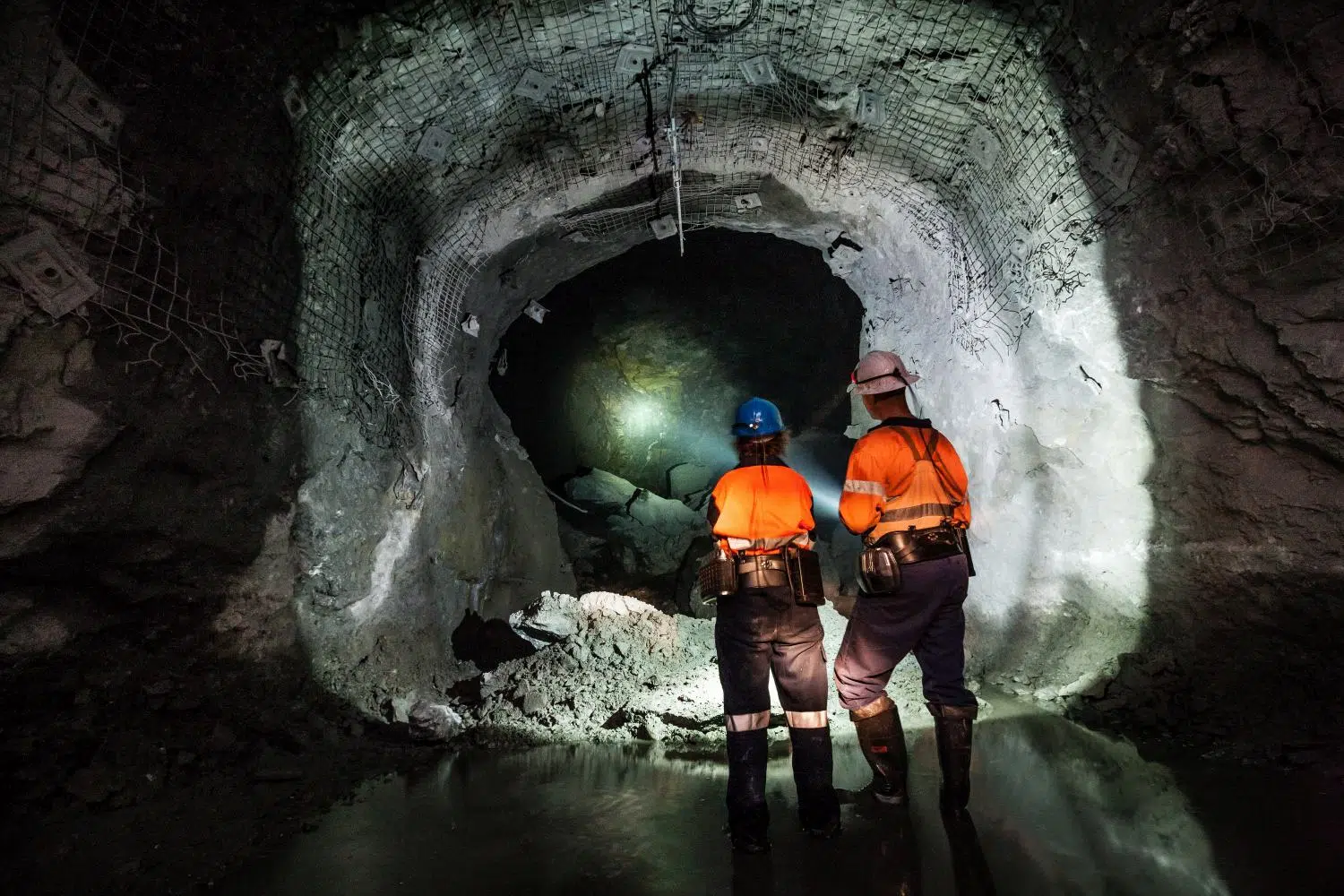

Welded Wire Mesh/Chain Link Mesh: Acts as a holding skin, containing small rocks and distributing load between rock bolts. It is crucial for preventing unraveling between bolts.
JF Osro Strap Rock Support
Steel Straps & Plates: These link individual rock bolts together, creating a cohesive support system. By distributing load across multiple bolts, they dramatically increase the overall effectiveness of the bolting
4. Steel Sets: The Skeletal Frame
I-Beam Sets: Provide strong, rigid support for specific applications, often in permanent accessways where immediate, high-load capacity is needed.
Yieldable Arches (e.g., TH Steel Sets): Designed for the extreme pressures of deep mining. These U-shaped sections, connected with slip couplings, allow the support structure to compress and deform in a controlled manner under immense load, rather than failing catastrophically.
Future Trends: Smarter, Stronger, More Responsive
The future of ground support is intelligent and integrated:
Digital Mine Design: Using geotechnical data to model stress and optimize support designs before a single bolt is installed.
High-Performance Materials: Development of bolts with even greater energy-absorption capacity and corrosion-resistant alloys for longer service life.
Automation & Robotics: Automated bolting jumbos and robotic shotcrete sprayers enhance safety, consistency, and efficiency.
Real-Time Monitoring: Instrumented bolts with embedded sensors provide live data on ground movement and support load, enabling predictive maintenance and early hazard detection.
Conclusion
Venturing deeper into the earth to extract essential metals requires an unwavering commitment to safety. Every rock bolt torqued, every layer of shotcrete applied, is a critical investment in that commitment. Choosing the right ground support system is not just an engineering decision—it is a core operational philosophy. By leveraging high-performance, reliable products and integrated system design, we empower mines to operate safely and efficiently, turning the most challenging geological conditions into manageable, productive environments.
